bigPCAcpp

Principal component analysis for bigmemory matrices

Frédéric Bertrand

The bigPCAcpp package provides high performance principal component analysis (PCA) routines specialised for bigmemory::big.matrix objects. It keeps data in bigmemory allocations from ingestion through eigendecomposition so that very large matrices can be analysed without copying them into base R matrices. In addition to the PCA core, the package offers streaming helpers that write scores, loadings, correlations, and contributions back into file-backed big.matrix targets for integration with downstream pipelines.

Beyond classical PCA, the package ships with scalable SVD tools that can process file-backed matrices block by block, and it includes robust PCA and robust SVD routines that temper the influence of outliers while remaining compatible with bigmemory workflows. For exploratory work on large batches, a scalable PCA interface lets users extract leading components without reading the full matrix into memory.

These workflows make it possible to analyse data sets that exceed the available RAM while keeping numerical stability through double-precision accumulation and LAPACK eigen decompositions. Current features include

• centring and scaling directly on big.matrix inputs,
• incremental score generation that avoids bringing data into memory,
• helpers to persist PCA diagnostics in file-backed storage,
• SVD utilities for dense and robust decompositions backed by bigmemory, and

Installation

You can install the development version of bigPCAcpp from GitHub with:

# install.packages("devtools")
devtools::install_github("fbertran/bigPCAcpp")

If you prefer a local source install, clone the repository and run:

R CMD build bigPCAcpp
R CMD INSTALL bigPCAcpp_0.9.0.tar.gz

Options

The package defines several options to control numerical tolerances and workspace allocation. They are prefixed with bigPCAcpp. and include:

Option	Default value	Description
bigPCAcpp.block_size	1000L	Number of rows processed in each block when streaming scores through BLAS.
bigPCAcpp.center_scale_epsilon	1e-8	Lower bound applied when rescaling columns to avoid division instabilities.
bigPCAcpp.progress	FALSE	Emit progress updates when computing PCA on long-running jobs.

All options can be changed with options() at runtime. For example, options(bigPCAcpp.block_size = 5000L) increases the streaming block size.

Examples

The examples below demonstrate the bigmemory workflow and compare the results with base R’s prcomp() implementation.

library(bigmemory)
library(bigPCAcpp)

# Allocate a 1,000 x 25 big.matrix with simulated values
n <- 1000
p <- 25
bm <- bigmemory::big.matrix(n, p, type = "double")
bm[,] <- matrix(rnorm(n * p), nrow = n)

# Run PCA and extract eigenvalues and rotation
res <- pca_bigmatrix(bm, center = TRUE, scale = TRUE)
res$eigenvalues
#>  [1] 1.2772679 1.2549573 1.2261127 1.2200832 1.2029447 1.1372111 1.1116603 1.0863140 1.0612750
#> [10] 1.0430975 1.0251884 1.0036304 0.9922516 0.9661366 0.9511738 0.9342366 0.9118102 0.8894958
#> [19] 0.8861798 0.8662711 0.8326502 0.8234052 0.7850452 0.7762024 0.7353990
res$importance
#> NULL
res$rotation[1:5, 1:3]
#>             [,1]        [,2]      [,3]
#> [1,] -0.13665626 -0.19398781 0.3217218
#> [2,] -0.07597561  0.09425838 0.1678119
#> [3,]  0.08992670  0.00729943 0.2609075
#> [4,]  0.10200029 -0.28583284 0.2290518
#> [5,]  0.19534252  0.32324433 0.1690638

# Generate PCA scores in bigmemory storage
scores <- bigmemory::big.matrix(
  nrow = n,
  ncol = 3,
  type = "double"
)

(pca_scores_bigmatrix(
  bm,
  res$rotation,
  center = res$center,
  scale = res$scale
))[1:6,1:6]
#>             [,1]        [,2]        [,3]       [,4]       [,5]       [,6]
#> [1,]  2.81870347 -0.06337779  1.99072631 -0.5920623 -1.6703024  1.6483439
#> [2,] -0.35747573 -0.80297261 -1.07285346  0.5123663 -1.4595653  0.5980145
#> [3,] -0.78310002  0.24236085  0.46701646 -0.2727803  0.4929943  2.2777379
#> [4,]  1.45650763 -0.74008842 -2.57891649  0.1402697  1.5748613  1.1219994
#> [5,] -1.56142789 -0.68169732 -0.01681349  0.1119421 -0.9571047 -1.0961306
#> [6,]  0.05141656 -0.91365588  0.30322391 -1.4171899 -0.2089137 -2.3574471

# Compare sum of absolute values with prcomp()
pr <- prcomp(bm[], center = TRUE, scale = TRUE)
sum(abs(abs(pr$rotation[, 1:3])-abs(res$rotation[, 1:3])))<10^(-6)
#> [1] TRUE

pca_bigmatrix() can also focus on a subset of leading components while streaming the results into file-backed matrices. The following snippet stores the first four principal components and keeps a running summary of their scores.

library(bigmemory)
library(bigPCAcpp)

set.seed(2025)
bm <- bigmemory::big.matrix(nrow = 1500, ncol = 40, type = "double")
bm[,] <- matrix(rnorm(1500 * 40), nrow = 1500)

# Request only the first four components
top_pca <- pca_bigmatrix(bm, center = TRUE, scale = TRUE, ncomp = 4)
top_pca$sdev
#> [1] 1.141546 1.124998 1.119607 1.109924

# Stream the corresponding scores into a file-backed allocation
path <- tempfile(fileext = ".bin")
desc <- paste0(path, ".desc")

scores_fb <- bigmemory::filebacked.big.matrix(nrow = nrow(bm), ncol = 4,
             type = "double", backingfile = basename(path), backingpath =
             dirname(path), descriptorfile = basename(desc)
)
pca_scores_stream_bigmatrix(
  bm,
  scores_fb,
  top_pca$rotation[, 1:4],
  center = top_pca$center,
  scale = top_pca$scale
)
#> <pointer: 0x10f559be0>

# Inspect a lightweight summary without loading the entire matrix
colMeans(scores_fb[, 1:2])
#> [1] 3.944992e-17 3.064216e-17
apply(scores_fb[, 1:2], 2, sd)
#> [1] 1.141546 1.124998

To stream the diagnostics into bigmemory-backed matrices, use the corresponding helper functions:

library(bigmemory)
library(bigPCAcpp)

n <- 1000
p <- 25
bm <- bigmemory::big.matrix(n, p, type = "double")
bm[,] <- matrix(rnorm(n * p), nrow = n)

rotation <- bigmemory::big.matrix(nrow = p, ncol = p)
loadings <- bigmemory::big.matrix(nrow = p, ncol = p)
correlations <- bigmemory::big.matrix(nrow = p, ncol = p)
contrib <- bigmemory::big.matrix(nrow = p, ncol = p)

pca_stream <- pca_stream_bigmatrix(bm, xpRotation = rotation,
                                   center = TRUE, scale = FALSE)
pca_variable_loadings_stream_bigmatrix(rotation, pca_stream$sdev,
                                       loadings)
#> <pointer: 0x138167dd0>
pca_variable_correlations_stream_bigmatrix(rotation, pca_stream$sdev,
                           pca_stream$column_sd, correlations)
#> Error in pca_variable_correlations_stream_bigmatrix(rotation, pca_stream$sdev, : argument "xpDest" is missing, with no default
pca_variable_contributions_stream_bigmatrix(loadings, contrib)
#> <pointer: 0x1381705f0>

Robust PCA and singular value decompositions

Robust workflows dampen the influence of outliers while retaining the familiar PCA interface. The pca_robust() helper centres variables by the median, optionally scales by the MAD, and relies on an iteratively reweighted SVD to derive principal components. The same robust solver is exposed directly via svd_robust() for use in custom pipelines, and the streaming-friendly svd_bigmatrix() wrapper computes classical SVDs on big.matrix objects without materialising dense copies in memory.

library(bigmemory)
library(bigPCAcpp)

set.seed(42)
mat <- matrix(rnorm(200), nrow = 40, ncol = 5)
mat[1, 1] <- 15  # introduce an outlier
mat_scaled <- scale(mat, center = TRUE, scale=TRUE)

# Classical PCA on the same data highlights the impact of the outlier
bm_small <- bigmemory::big.matrix(nrow = nrow(mat_scaled), ncol = ncol(mat_scaled), type = "double")
bm_small[,] <- mat_scaled
classical <- pca_bigmatrix(bm_small, center = FALSE, scale = FALSE, ncomp = 3)
classical$explained_variance
#> [1] 0.2940708 0.2332728 0.2031007

scores_classical <- pca_scores_bigmatrix(xpMat = bm_small, rotation = classical$rotation, center = classical$center, classical$scale)
scores_classical[1,]
#> [1] -4.752614 -1.534966  1.578737

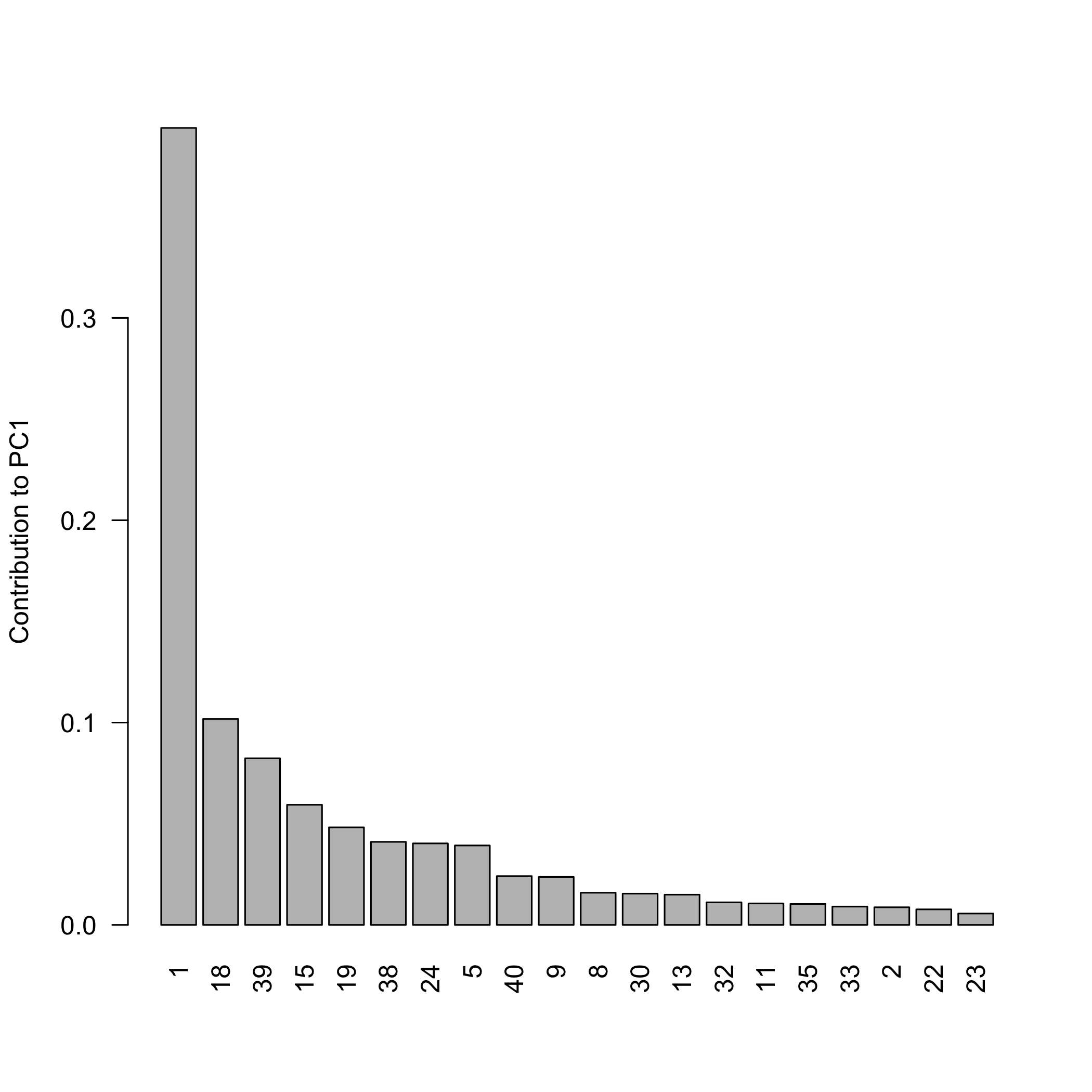

pca_plot_contributions(pca_individual_contributions(scores_classical, classical$sdev))

plot of chunk robustsvdexample

# Robust PCA keeps the outlier from dominating the rotation
robust <- pca_robust(mat_scaled, center = FALSE, scale = FALSE, ncomp = 3)
robust$explained_variance
#> [1] 0.3633363 0.3509611 0.2857026

robust$scores[1,]
#> [1] 1.025663 1.948710 2.095546

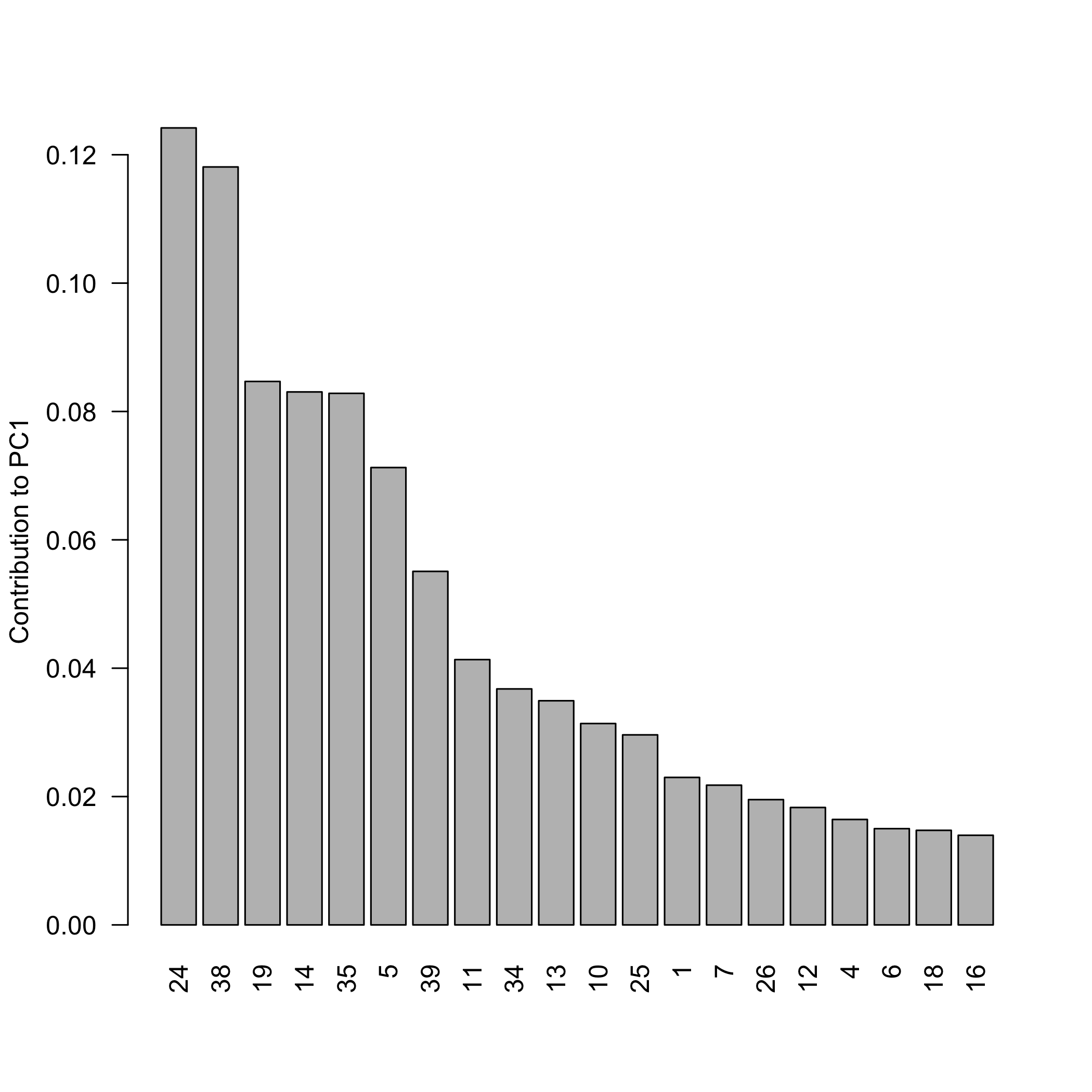

pca_plot_contributions(pca_individual_contributions(robust$scores, robust$sdev))

plot of chunk robustsvdexample

cbind(classical = classical$rotation[1:5, 1], robust = robust$rotation[1:5, 1])
#>       classical     robust
#> [1,] -0.5793644 0.01128235
#> [2,] -0.3121420 0.59547597
#> [3,] -0.5716000 0.77399456
#> [4,]  0.4071138 0.18028142
#> [5,]  0.2728298 0.11709868

# Classical SVD on a file-backed big.matrix
path <- tempfile(fileext = ".bin")
desc <- paste0(path, ".desc")

bm <- bigmemory::filebacked.big.matrix(200, 10, type = "double", backingfile =
      basename(path), backingpath = dirname(path), descriptorfile = basename(desc))
bm[,] <- matrix(rnorm(2000), nrow = 200)
svd_stream <- svd_bigmatrix(bm, nu = 3, nv = 3)
svd_stream$d
#>  [1] 16.66256 15.90085 15.80823 14.84659 13.99062 13.52699 13.06717 12.61343 12.15871 11.63997

# Direct access to the robust SVD routine
svd_out <- svd_robust(mat, ncomp = 3)
svd_out$d
#> [1] 16.789433  6.178555  5.620833
svd_out$weights[1:6]
#> [1] 1 1 1 1 1 1

Robust decompositions down-weight the contaminated observations while the classical stream demonstrates how to fetch singular vectors without materialising the dense matrix. The robust solver also exposes per-row weights that can be reused to flag problematic observations for further inspection.

Plotting diagnostics

bigPCAcpp bundles plot helpers that operate on both dense matrices and big.matrix backends. The snippets below illustrate how to call each function using results from pca_bigmatrix(). For instance, the pca_plot_scores() helper samples observations and draws a scatter plot of their scores on a chosen pair of components, which is particularly useful when you need to visually assess potential clusters without loading the full data set into memory.

library(bigmemory)
library(bigPCAcpp)

set.seed(123)
bm <- bigmemory::big.matrix(500, 6, type = "double")
bm[,] <- matrix(rnorm(500 * 6), nrow = 500)
res <- pca_bigmatrix(bm, center = TRUE, scale = TRUE)

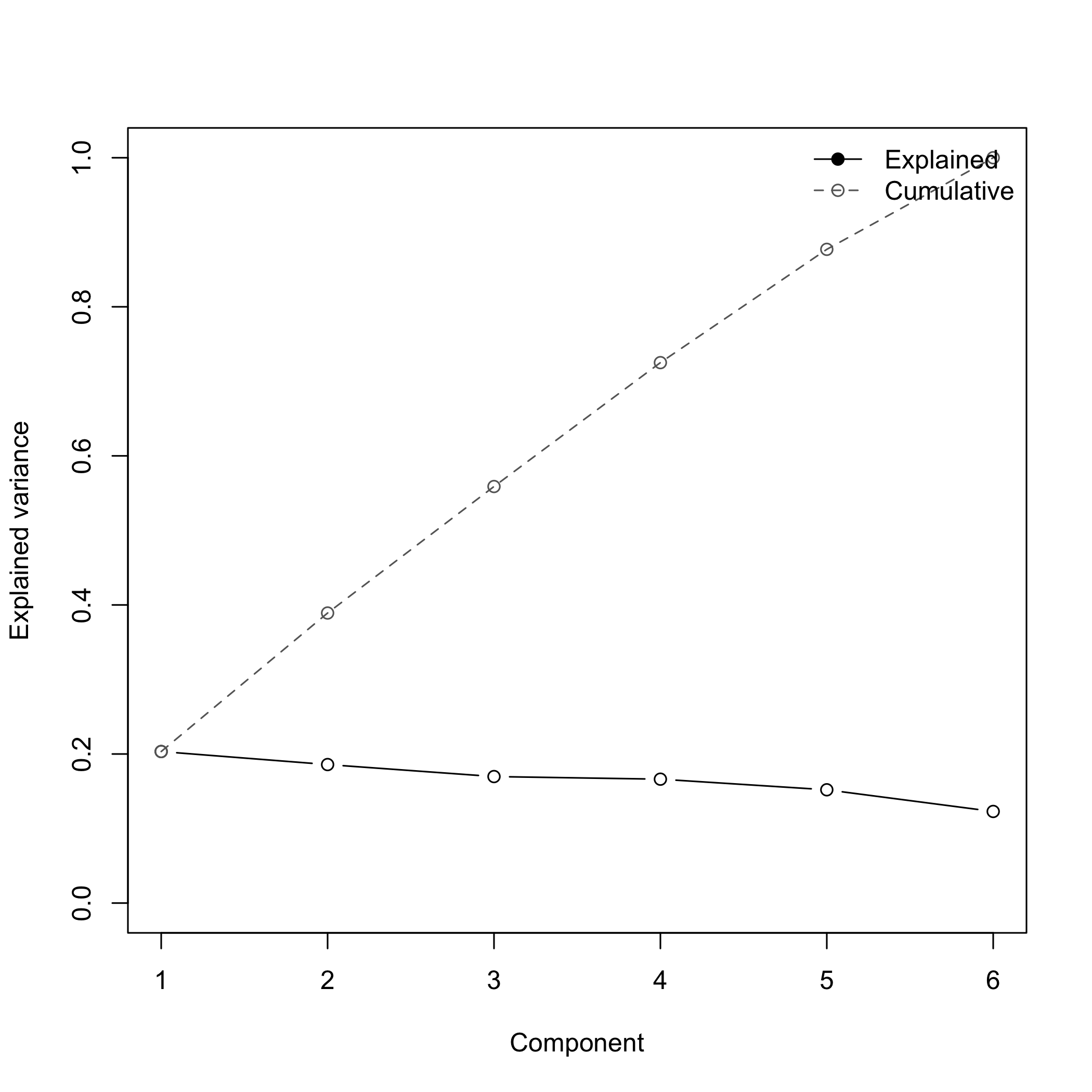

# Scree plot of explained variance
pca_plot_scree(res)

plot of chunk plotexamples

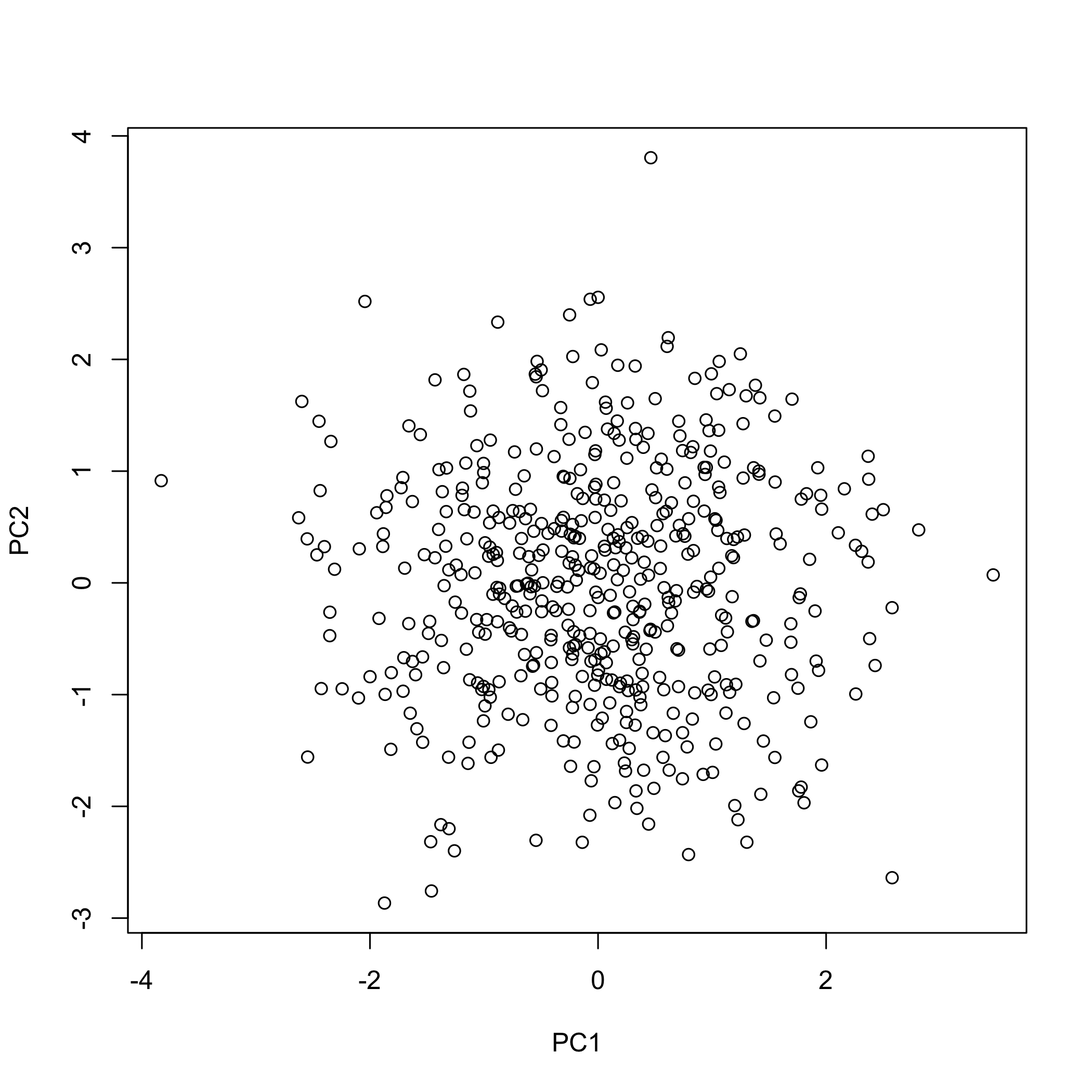

# Scatter plot of sampled scores on PCs 1 and 2
pca_plot_scores(
  bm,
  res$rotation,
  center = res$center,
  scale = res$scale,
  components = c(1L, 2L),
  max_points = 2000L,
  seed = 2024
)

plot of chunk plotexamples

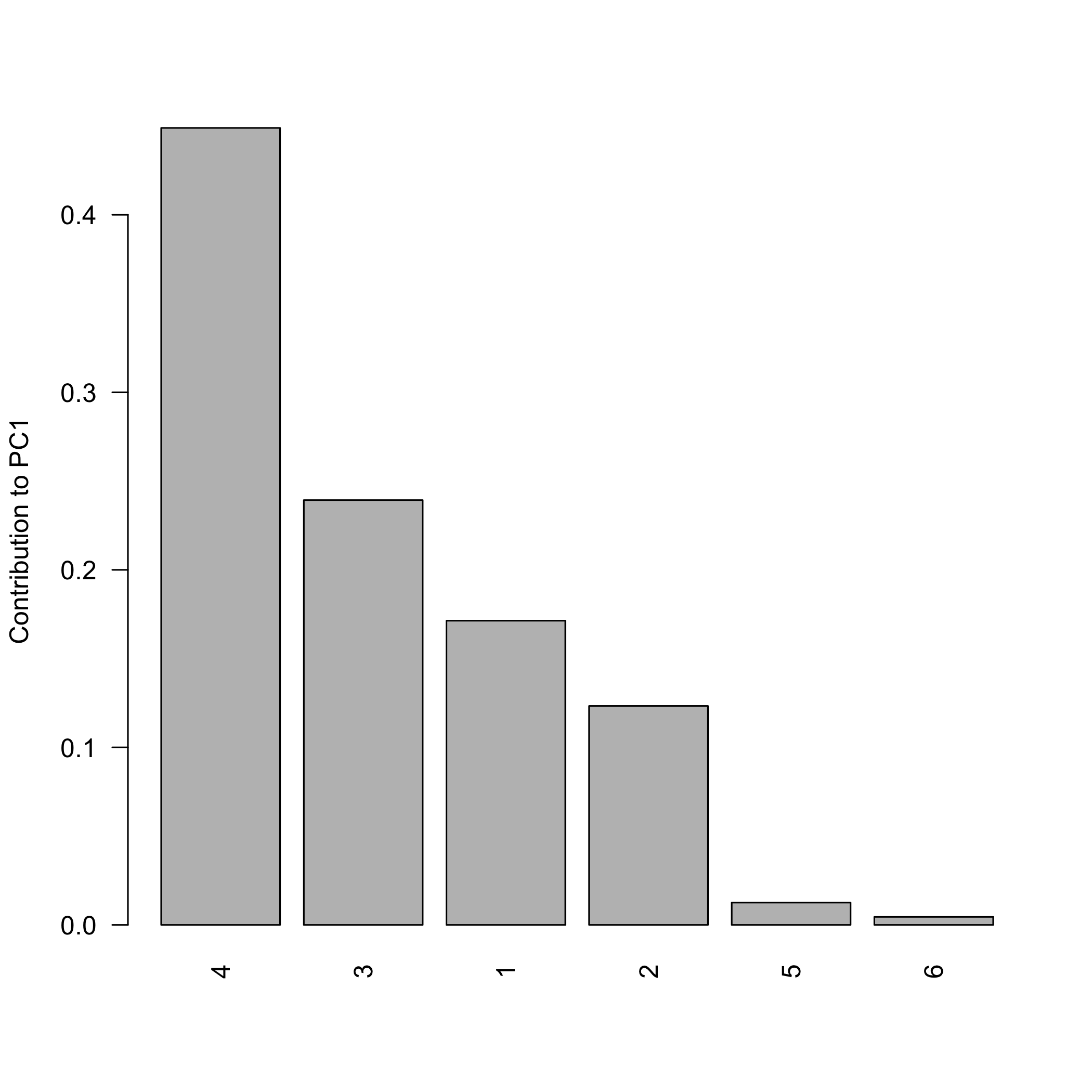

# Contribution bar plot for the leading component
loadings <- pca_variable_loadings(res$rotation, res$sdev)
contrib <- pca_variable_contributions(loadings)
pca_plot_contributions(contrib, component = 1L, top_n = 10L)

plot of chunk plotexamples

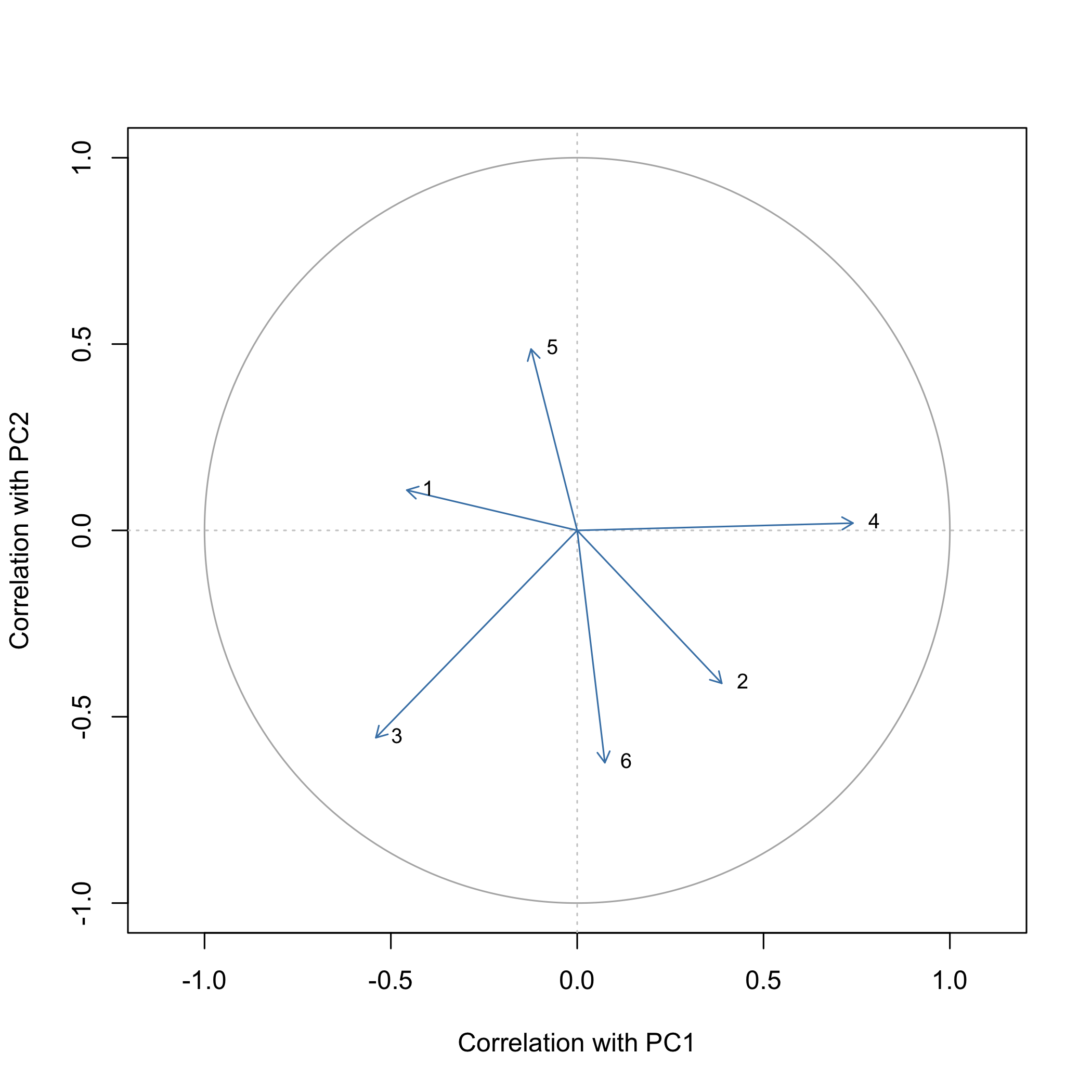

# Correlation circle for the first two components
correlations <- pca_variable_correlations(res$rotation, res$sdev,
res$column_sd, res$scale)
pca_plot_correlation_circle(correlations, components = c(1L, 2L))

plot of chunk plotexamples

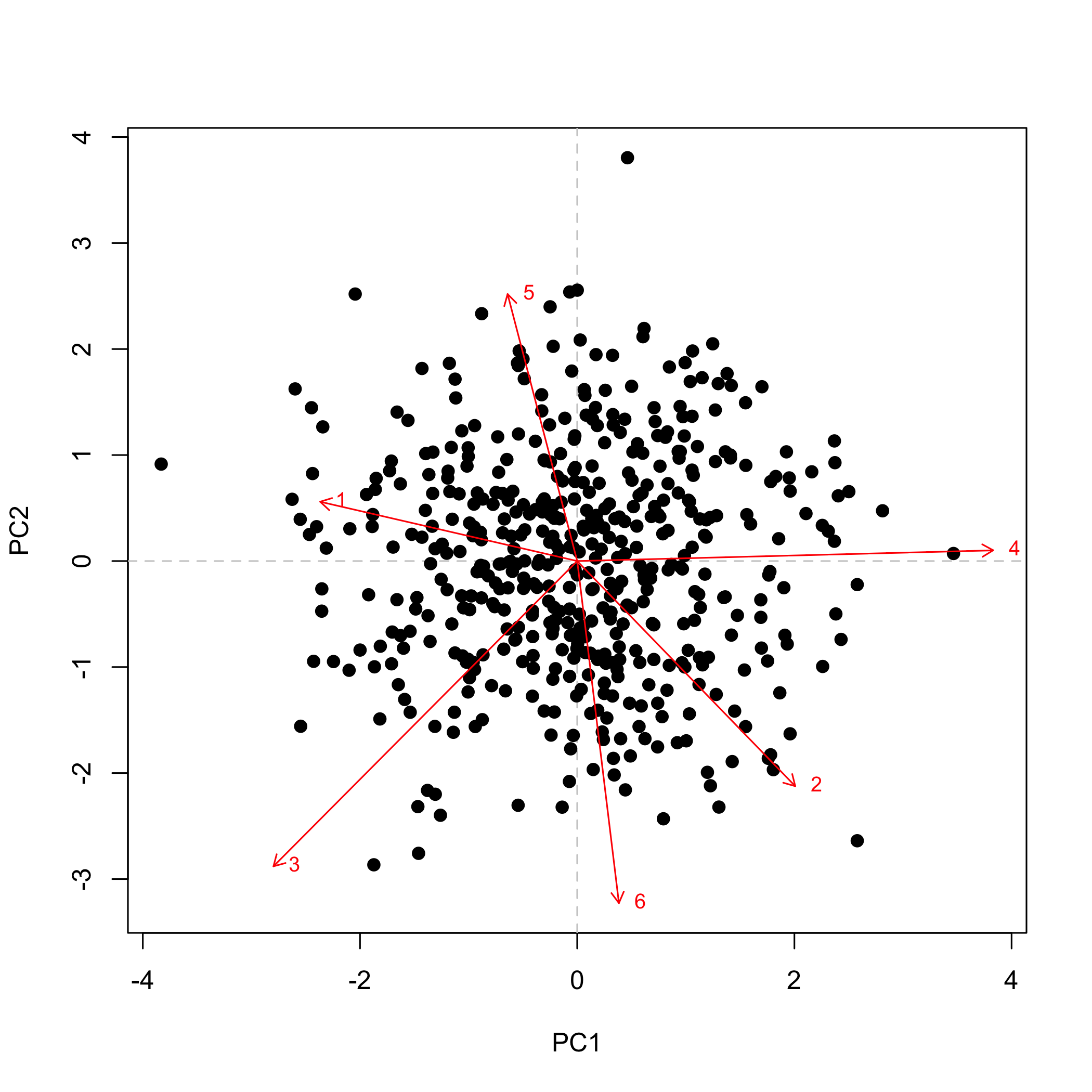

# Biplot combining scores and loadings
scores <- res$scores
if (is.null(scores)) {
  scores <- pca_scores_bigmatrix(bm, res$rotation, center = res$center, scale = res$scale)
}
pca_plot_biplot(scores, loadings, components = c(1L, 2L))

plot of chunk plotexamples

Citation

If you use bigPCAcpp in academic work, please cite:

Bertrand F. (2025). bigPCAcpp: Principal Component Analysis for bigmemory Matrices.

Maintainer

Maintainer: Frédéric Bertrand frederic.bertrand@lecnam.net

For questions, bug reports, or contributions, please open an issue on GitHub.
