WebGL Boxplot Layer — geom_boxplot

Add a boxplot layer tagged for the ggWebGL renderer. Boxplot statistics are computed by ggplot2; the renderer serializes the built box body as rectangles, medians/whiskers as pure segments, and outliers as points.

Usage

geom_boxplot_webgl(
  mapping = NULL,
  data = NULL,
  stat = "boxplot",
  position = "dodge2",
  ...,
  outliers = TRUE,
  outlier.colour = NULL,
  outlier.color = NULL,
  outlier.fill = NULL,
  outlier.shape = NULL,
  outlier.size = NULL,
  outlier.stroke = 0.5,
  outlier.alpha = NULL,
  whisker.colour = NULL,
  whisker.color = NULL,
  whisker.linetype = NULL,
  whisker.linewidth = NULL,
  staple.colour = NULL,
  staple.color = NULL,
  staple.linetype = NULL,
  staple.linewidth = NULL,
  median.colour = NULL,
  median.color = NULL,
  median.linetype = NULL,
  median.linewidth = NULL,
  box.colour = NULL,
  box.color = NULL,
  box.linetype = NULL,
  box.linewidth = NULL,
  notch = FALSE,
  notchwidth = 0.5,
  staplewidth = 0,
  varwidth = FALSE,
  na.rm = FALSE,
  orientation = NA,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping

Set of aesthetic mappings created by aes(). If specified and inherit.aes = TRUE (the default), it is combined with the default mapping at the top level of the plot. You must supply mapping if there is no plot mapping.

data

The data to be displayed in this layer. There are three options:

If NULL, the default, the data is inherited from the plot data as specified in the call to ggplot().

A data.frame, or other object, will override the plot data. All objects will be fortified to produce a data frame. See fortify() for which variables will be created.

A function will be called with a single argument, the plot data. The return value must be a data.frame, and will be used as the layer data. A function can be created from a formula (e.g. ~ head(.x, 10)).

stat

Statistical transformation to use. Defaults to "boxplot" so ggplot2 computes boxplot summary statistics before WebGL serialization.

position

A position adjustment to use on the data for this layer. This can be used in various ways, including to prevent overplotting and improving the display. The position argument accepts the following:

The result of calling a position function, such as position_jitter(). This method allows for passing extra arguments to the position.
A string naming the position adjustment. To give the position as a string, strip the function name of the position_ prefix. For example, to use position_jitter(), give the position as "jitter".
For more information and other ways to specify the position, see the layer position documentation.

...

Additional arguments forwarded through ggplot2::layer(), including ggplot2::stat_boxplot() parameters such as coef and width, plus static aesthetics.

outliers

Whether to display (TRUE) or discard (FALSE) outliers from the plot. Hiding or discarding outliers can be useful when, for example, raw data points need to be displayed on top of the boxplot. By discarding outliers, the axis limits will adapt to the box and whiskers only, not the full data range. If outliers need to be hidden and the axes needs to show the full data range, please use outlier.shape = NA instead.

outlier.colour, outlier.color, outlier.fill, outlier.shape, outlier.size, outlier.stroke, outlier.alpha

Default aesthetics for outliers. Set to NULL to inherit from the data's aesthetics.

whisker.colour, whisker.color, whisker.linetype, whisker.linewidth

Default aesthetics for the whiskers. Set to NULL to inherit from the data's aesthetics.

staple.colour, staple.color, staple.linetype, staple.linewidth

Default aesthetics for the staples. Set to NULL to inherit from the data's aesthetics. Note that staples don't appear unless the staplewidth argument is set to a non-zero size.

median.colour, median.color, median.linetype, median.linewidth

Default aesthetics for the median line. Set to NULL to inherit from the data's aesthetics.

box.colour, box.color, box.linetype, box.linewidth

Default aesthetics for the boxes. Set to NULL to inherit from the data's aesthetics.

notch

If FALSE (default) make a standard box plot. If TRUE, make a notched box plot. Notches are used to compare groups; if the notches of two boxes do not overlap, this suggests that the medians are significantly different.

notchwidth

For a notched box plot, width of the notch relative to the body (defaults to notchwidth = 0.5).

staplewidth

The relative width of staples to the width of the box. Staples mark the ends of the whiskers with a line.

varwidth

If FALSE (default) make a standard box plot. If TRUE, boxes are drawn with widths proportional to the square-roots of the number of observations in the groups (possibly weighted, using the weight aesthetic).

na.rm

If FALSE, the default, missing values are removed with a warning. If TRUE, missing values are silently removed.

orientation

The orientation of the layer. The default (NA) automatically determines the orientation from the aesthetic mapping. In the rare event that this fails it can be given explicitly by setting orientation to either "x" or "y". See the Orientation section for more detail.

show.legend

logical. Should this layer be included in the legends? NA, the default, includes if any aesthetics are mapped. FALSE never includes, and TRUE always includes. It can also be a named logical vector to finely select the aesthetics to display. To include legend keys for all levels, even when no data exists, use TRUE. If NA, all levels are shown in legend, but unobserved levels are omitted.

inherit.aes

If FALSE, overrides the default aesthetics, rather than combining with them. This is most useful for helper functions that define both data and aesthetics and shouldn't inherit behaviour from the default plot specification, e.g. annotation_borders().

Value

A Layer ready for ggplot2.

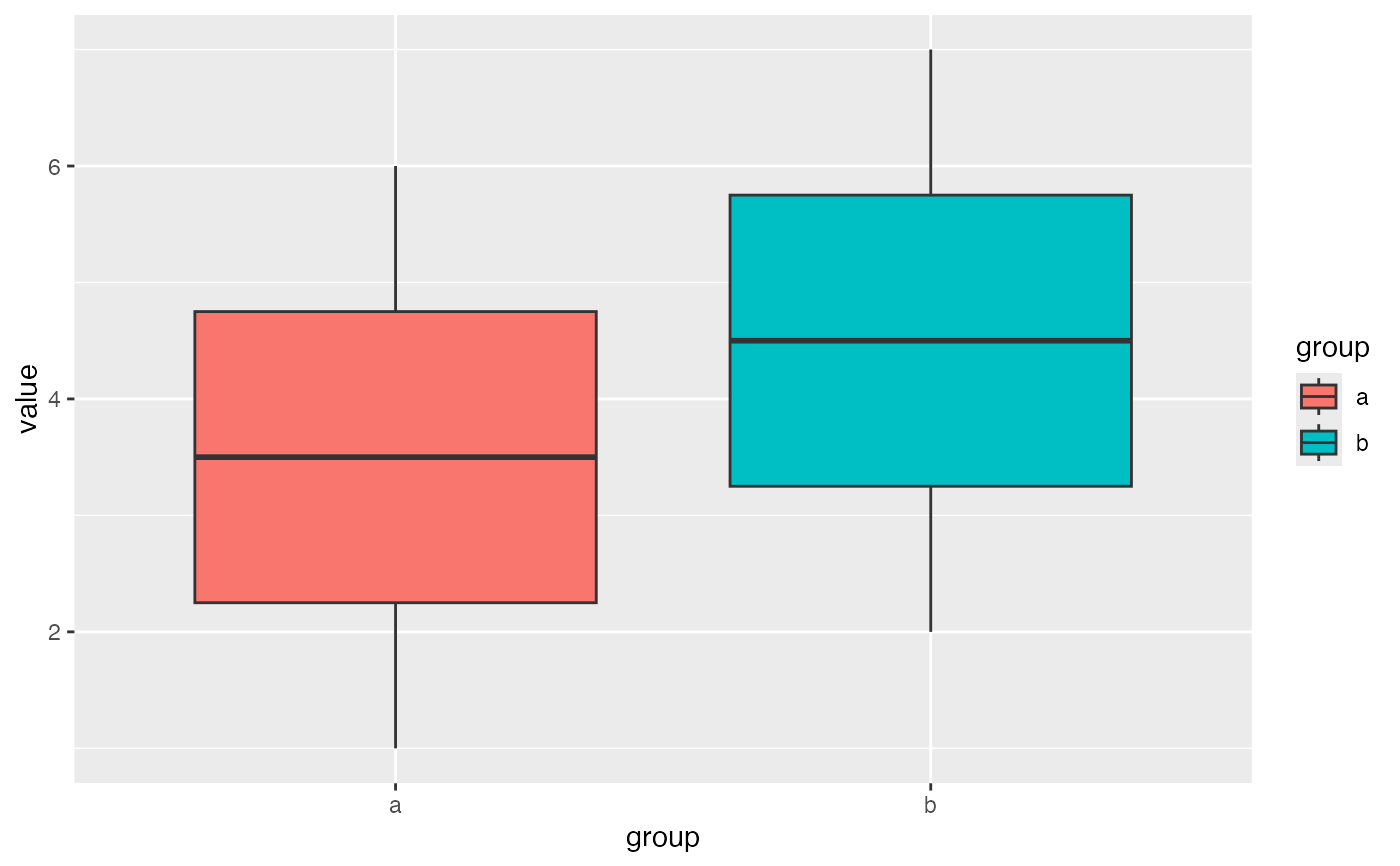

Examples

box_data <- data.frame(group = rep(c("a", "b"), each = 6), value = c(1:6, 2:7))
ggplot2::ggplot(box_data, ggplot2::aes(group, value, fill = group)) +
  geom_boxplot_webgl()
