Request a 3D WebGL Coordinate System — coord_webgl

coord_webgl_3d() is a ggplot-addable helper that marks the WebGL payload as cartesian3d and installs a structured 3D view contract. It does not replace ggplot2's 2D coordinate system; the standard ggplot object remains valid, and the 3D interpretation is applied by ggplot_webgl().

Usage

coord_webgl_3d(
  projection = c("perspective", "orthographic"),
  camera = c("orbit", "trackball"),
  depth_test = TRUE,
  state = list()
)

Arguments

projection: Projection mode, "perspective" or "orthographic".
camera: 3D camera controller, "orbit" or "trackball".
depth_test: Logical scalar; whether the browser renderer should enable depth testing for this scene.
state: Optional camera state list passed to ggwebgl_view().

Value

A ggplot-addable ggwebgl_coord_3d object.

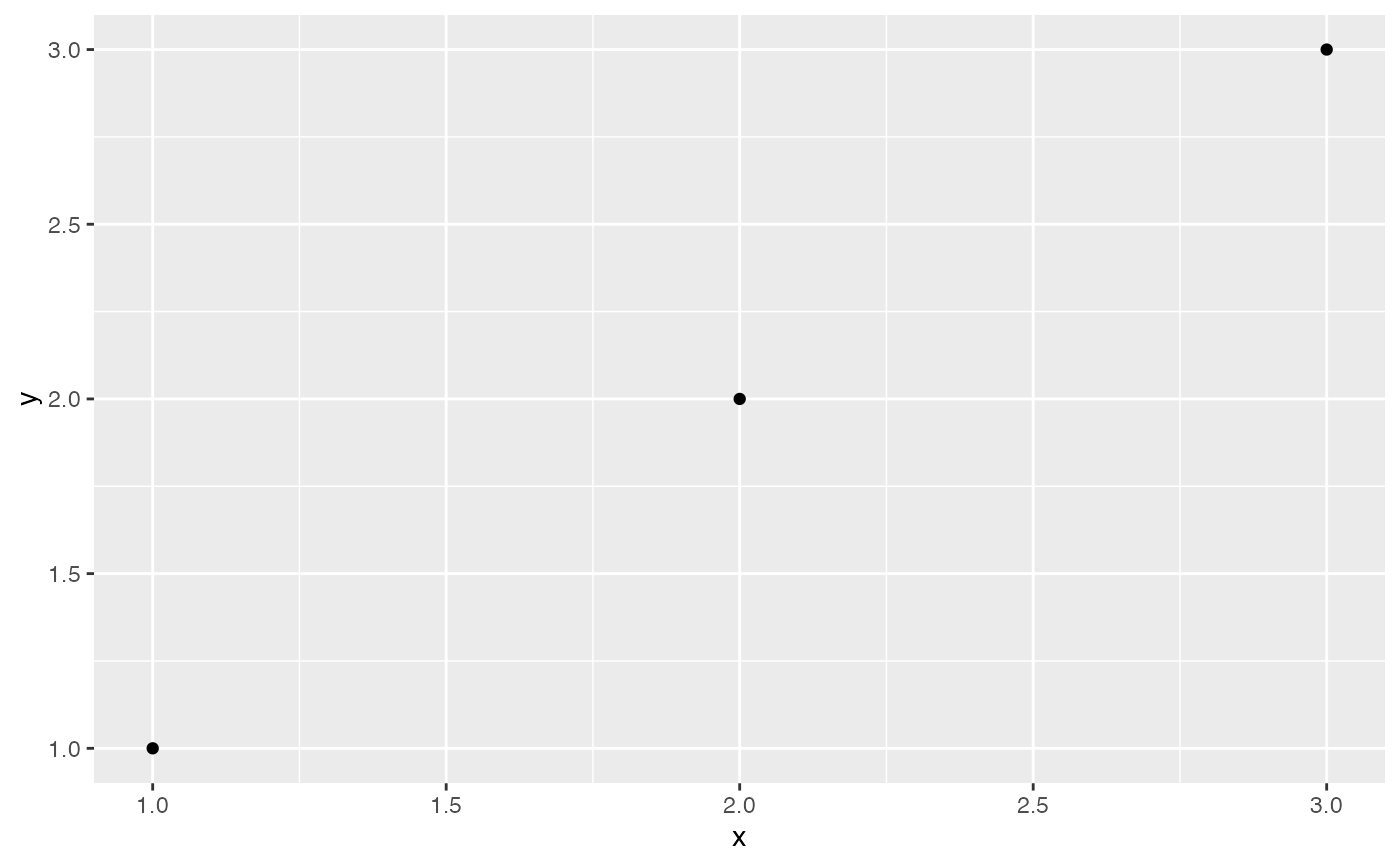

Examples

ggplot2::ggplot(
  data.frame(x = 1:3, y = 1:3, z = c(0, 1, 0)),
  ggplot2::aes(x, y, z = z)
) +
  geom_point_webgl() +
  coord_webgl_3d()
